Marin
Marin: Rift Zone Jr 24" - 2023

Marin

Marin: Rift Zone Jr 24" - 2023

$1,799.00
(No reviews yet) Write a Review
Condition:
New
Adding to cart… The item has been added

Description

Marin: Rift Zone Jr - 24" wheels

*Formerly Hawk Hill Jr. 24"*

The Rift Zone Jr is Marin’s take on the ultimate do-it-all trail bike, bringing big-bike performance for little shredders. This kids mountain bike was made to party, just like the full-sized Rifty. And just like the 'grown up' Rift Zone, it has 130mm rear travel, a lightweight aluminum frame and their super-plush MultiTrac suspension platform for endless good times on the trails.

 The Rift Zone JR 24" has easy-to-ride 24" wheels but shares the same frame, fork and shock as the Rift Zone 26. Simply swap the wheels and cranks when junior grows up and no need to buy another bike for another few years.



COLOR

Teal Black



SIZE / Rider height range

One Size: 122.5cm - 142.5cm

Allows 26" wheels & 120mm cranks: 4'9" - 5'2"



SPECS

FRAME

All New Series 3 6061 Aluminum Frame, 24" Wheel w/ Clearance for 26", 130mm Travel, MultiTrac Suspension Platform, 135mm Open Dropout (Upgradeable to 142x12mm Thru-Axle), 73mm Threaded BB

FRONT SUSPENSION

X-Fusion Velvet RLC 26", 130mm Travel, Compression and Rebound Adjustment, 100x15mm Thru Axle

REAR SUSPENSION

X-Fusion O2 Pro R, 190x51mm, Custom Tune, M8x22.2mm Hardware

RIMS

Marin, Double Wall Alloy, 27mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible

HUB, REAR

Forged Alloy, 135mm, Quad Sealed Bearings, Centerlock Disc, 32H

HUB, FRONT

Forged Alloy, 100x15mm, Centerlock Disc, 32H

SPOKE, NIPPLES

14g Stainless Steel

TIRES

Vee Tire Co, Flow Snap 24x2.4", Tackee Compound, Wire Bead

DERAILLEUR, REAR

Shimano Deore, 11 Speed, SGS

DERAILLEUR, FRONT

-

SHIFT LEVER

Shimano Deore, 11-Speed, SL-5100R

CRANKSET

Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring, Direct Mount Type

BOTTOM BRACKET

External Sealed Cartridge Bearings

CHAIN

KMC X-11 Silver and Black

CASSETTE

SunRace, 11-Speed, 11-51T, ED Black

BRAKE, FRONT

Shimano MT-201 Hydraulic Disc, 180mm Rotor

BRAKE, REAR

Shimano MT-201 Hydraulic Disc, 160mm Rotor

BRAKE LEVERS

Shimano BL-MT201 Hydraulic

HANDLEBAR

Marin Mini-Riser, 6061 Double Butted Aluminum, 15mm Rise, 720mm Width, 4º Up, 9º Back

STEM

Marin 3D Forged Alloy, 35mm

GRIPS

Marin Dual Density

HEADSET

FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

SEATPOST

Marin Alloy, 30.9mm

SADDLE

Marin Speed Concept

*Specifications, pricing, and availability are subject to change without notice.



TECHNOLOGY

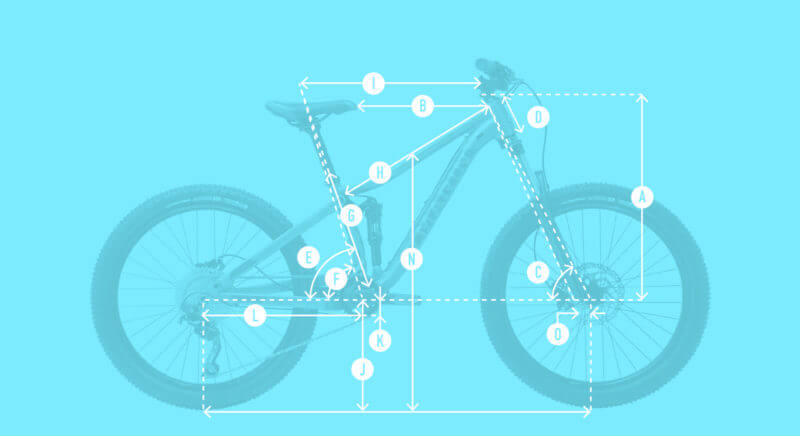

TRAIL GEOMETRY

We put as much attention when designing the Rift Zone 26/Jr as we do the adult bikes, so young riders get to experience modern long/low/slack geometry, enhancing comfort and control when the trail gets steep and/or rough.

AIR SUSPENSION

Easily adjustable air suspension is tunable for a growing kid.

INTERNAL CABLE & HOSE ROUTING

The Rift Zone 26 and Rift Zone Jr are compatible with internally routed dropper posts, with internal rear derailleur routing for a clean look and snag free ride. Unused ports come pre-plugged, to keep the frame insides clean.

DISC BRAKES

Hydraulic disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.

24” WHEELS – UPGRADEABLE TO 26”

The 24" wheel Rift Zone Jr can fit 26” wheels down the road, extending its life and versatility.
