Marin: Hawk Hill Jr - 2020
MOUNTAIN - FULL SUSPENSION - KIDS
HAWK HILL JR.
The Hawk Hill Jr is built around Marin’s MultiTrac suspension system and is their most capable kids bike ever, with all of the modern adult tech and trail geometry in a package for the younger rider. Lightweight 24” wheels and air tuned suspension lead to a fun bike out on the trail, equally at home on rolling hills or downhill singletrack. Switch to 26” wheels down the line as the Hawk Hill Jr grows with your kid.
Marin’s Hawk Hill Jr is a mountain bike for kids that is just as capable as its full size counterpart. This kids MTB features 120mm travel MultiTrac suspension, a Shimano Deore 1x10-Speed drivetrain, and hydraulic disc brakes to help your kid ride comfortably. Lightweight 24” wheels and air tuned suspension lead to a fun bike out on the trail, equally at home on rolling hills or downhill singletrack. Switch to 26” wheels down the line as the Hawk Hill Jr grows with your kid.
Color: Gloss Cyan/Black
The Hawk Hill Jr is also available in an adult model.
Series 3 6061 Aluminum Frame, 24" wheel with clearance for 26", 120mm Travel, MultiTrac Suspension Platform, 135mm Open Dropout (Upgradeable to 142x12mm Thru-Axle)
X-Fusion Velvet RL 26", 120mm Travel, Compression and Rebound Adjustment, 100x15mm Thru-Axle
X-Fusion O2 Pro R, 190x51mm, Custom Tune, 22.2mm x M8 Hardware
Marin, Double Wall Alloy, 27mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
Forged Alloy, 135mm, Quad Sealed Bearings, Centerlock Disc, 32H
Formula, 100x15mm, Centerlock Disc, 32H
14g Stainless Steel
Vee Tire, Flow Snap 24x2.25", Tackee Compound, Wire Bead
Shimano Deore Shadow Plus
Micro Shift, SLM895, 11 Speed
Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow-Wide 32T Chainring, Direct Mount Type
External Sealed Cartridge Bearings
SunRace 11-Speed, 11-46T
Shimano MT-201 Hydraulic Disc, 180mm Rotor
Shimano MT-201 Hydraulic Disc, 160mm Rotor
Shimano MT-201 Hydraulic
Marin Mini-Riser, 6061 Double Butted Aluminum, 15mm Rise, 720mm Width, 4º Up, 9º Back
Marin 3D Forged Alloy, 35mm
Marin Dual Density
FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Marin Alloy, 27.2mm
Marin Speed Concept
Kids Specific Nylon Pedal
*SPECIFICATIONS AND PRICING ARE SUBJECT TO CHANGE WITHOUT NOTICE

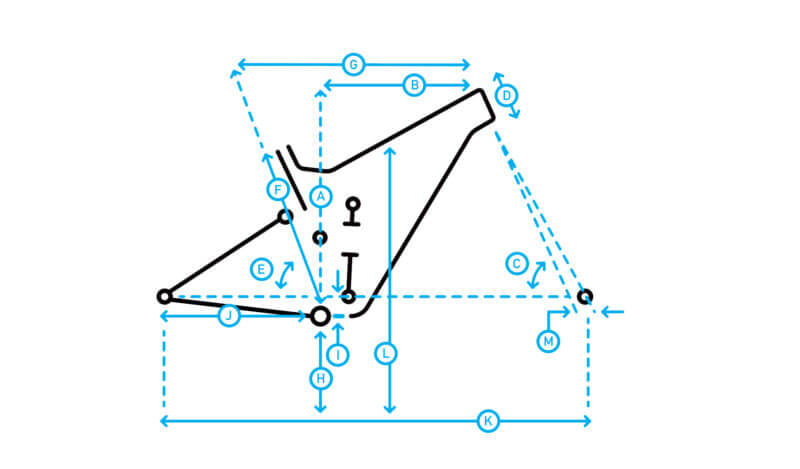

|HEADTUBE ANGLE (C)
|HEADTUBE LENGTH (D)
|SEATTUBE ANGLE (EFFECTIVE) (E)
|SEATTUBE LENGTH (F)
|TOPTUBE (EFFECTIVE) (G)
|BOTTOM BRACKET HEIGHT (H)
|BOTTOM BRACKET DROP (I)
|STANDOVER HEIGHT (L)
|FORK OFFSET (M)
All lengths in Millimeters
24” WHEELS – UPGRADEABLE TO 26”
The Hawk Hill Jr can fit 26” wheels down the road, extending its life and versatility.
Easily adjustable air suspension is tunable for a growing kid.
The Hawk Hill Jr is compatible with internally routed dropper posts, with internal rear derailleur routing for a clean look and snag free ride.
Hydraulic disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.
Recommended Sag = 25%/14.25mm
REAR SHOCK SET UP
Step 1: Set correct pressure in rear shock.
Step 2: Sit on the bike and cycle the suspension (*with correct riding gear).
Step 3: Re-set O-ring and sit on the bike, DO NOT BOUNCE, carefully step off.
Step 4: Measure sag (from o-ring to seal of shock), If it does not match the bike’s recommended sag in millimeters repeat process.
Step 5: Adjust rebound setting to ensure proper control.
FORK SET UP
Marin recommends that all bikes front and rear suspension feels balanced.
Step 1: After rear sag is set follow the recommended pressure from the fork manufacture.
Step 2: Bounce evenly up and down on the bike, cycling the suspension up and down to make sure both front and rear suspension feel balanced, if the front does not match the rear add or release pressure.
Step 3: Once the bike feels balanced adjust the rebound damping to ensure proper control.
X-FUSION O2 PRO R
|RIDER WEIGHT||AIR PRESSURE|
