Marin: Hawk Hill Jr - 2018

Marin

$1,499.99
Condition:
New
Quantity:

Need Some Advice?Speak to one of our gearheads

Product Description

Marin: Hawk Hill Jr - 2018

The Hawk Hill Jr is for the ambitious kid looking to keep up
with the adults and push the boundaries of the local bike park
on a bike just as capable as its full size counterpart.



Color: Satin Charcoal/Cyan, Satin Charcoal/ Purple



The Hawk Hill Jr is also available in an adult model.





Specs

FRAME

Series 3 6061 Aluminum Frame, 24" wheel with clearance for 26", 120mm Travel, MultiTrac Suspension Platform, 135mm Open Dropout (Upgradeable to 142x12mm Thru-Axle)

FRONT SUSPENSION

X-Fusion Velvet RL 26", 120mm Travel, Compression and Rebound Adjustment, 100x15mm Thru-Axle

REAR SUSPENSION

X-Fusion O2 Pro R, 190x51mm, Custom Tune, 22.2mm x M8 Hardware

RIMS

Marin, Double Wall Alloy, 27mm Inner, Pinned Joint, Disc Specific, Tubless Compatible

HUB REAR

Joytech, 135mm, Quad Sealed Bearings, Centerlock Disc, 32H

HUB FRONT

Formula, 100x15mm, Centerlock Disc, 32H

SPOKES

14g Stainless Steel

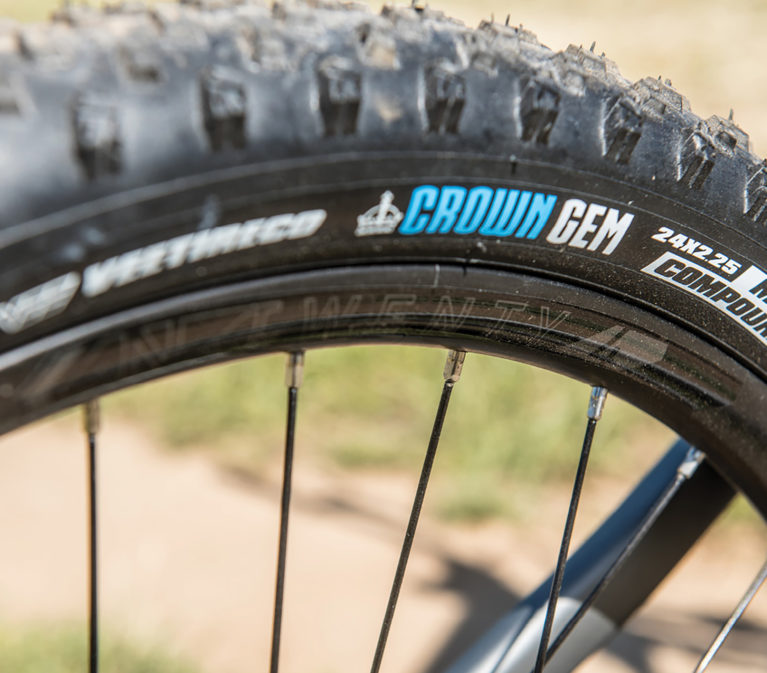

TIRES

Vee Tire, 24x2.25", Wire Bead

DERAILLEUR REAR

Shimano Deore Shadow Plus Direct Mount 10-Speed

DERAILLEUR FRONT

- - -

SHIFT LEVER

Shimano Deore 1x10-Speed

CRANKSET

Marin Forged Alloy 1x10, Hollow Spindle, Steel Narrow-Wide 30T Chainring, 76mm BCD

BOTTOM BRACKET

Sealed Cartridge Bearings, Square Taper

CHAIN

KMC X10

CASSETTE

SunRace 10-Speed, 11-42T

BRAKES FRONT

Shimano BR-M315 Hydraulic Disc, 180mm Rotor

BRAKES REAR

Shimano BR-M315 Hydraulic Disc, 160mm Rotor

BRAKE LEVERS

Shimano BL-M315 Hydraulic

HANDLEBAR

Marin Mini-Riser, 6061 Double Butted Aluminum, 15mm Rise, 720mm Width, 4º Up, 9º Back

STEM

Marin 3D Forged Alloy, 45mm

GRIPS

Marin Dual Density

HEADSET

FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

SEATPOST

Marin, Two Bolt Alloy

SADDLE

Marin Speed Concept

PEDALS

Kids Specific Nylon Pedal



SPECIFICATIONS AND PRICING ARE SUBJECT TO CHANGE WITHOUT NOTICE

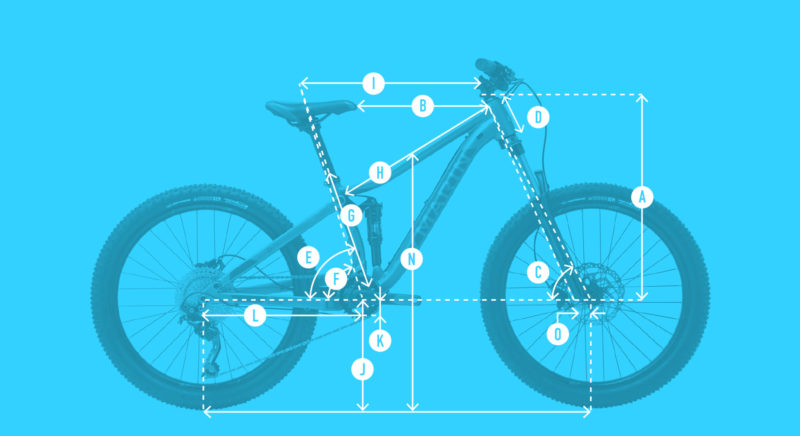

GEOMETRY






13"

A. STACK (MM)

536.24

B. REACH (MM)

380

C. HEADTUBE ANGLE

67.5°

D. HEADTUBE LENGTH (MM)

105

E. SEATTUBE ANGLE VIRTUAL

73.5°

F. SEATTUBE ANGLE ACTUAL

69°

G. SEATTUBE LENGTH (MM)

335

H. TOPTUBE ACTUAL (MM)

497.14

I. TOPTUBE EFFECTIVE (MM)

536

J. BOTTOM BRACKET HEIGHT (MM)

305

K. BOTTOM BRACKET DROP (MM)

10

L. CHAINSTAY (MM)

428.5

M. WHEELBASE (MM)

1018

N. STANDOVER HEIGHT (MM)

621

O. FORK OFFSET (MM)

42

SEATPOST DIAMETER (MM)

30.9

HANDLEBAR WIDTH (MM)

720

STEM LENGTH (MM)

45

CRANK LENGTH (MM)

152



TECHNOLOGY


24” WHEELS – UPGRADABLE TO 26”

The Hawk Hill Jr can fit 26” wheels down the road, extending its life and versatility.




INTERNAL ROUTING

The Hawk Hill Jr is compatible with internally routed dropper posts, with internal rear derailleur routing for a clean look and snag free ride.

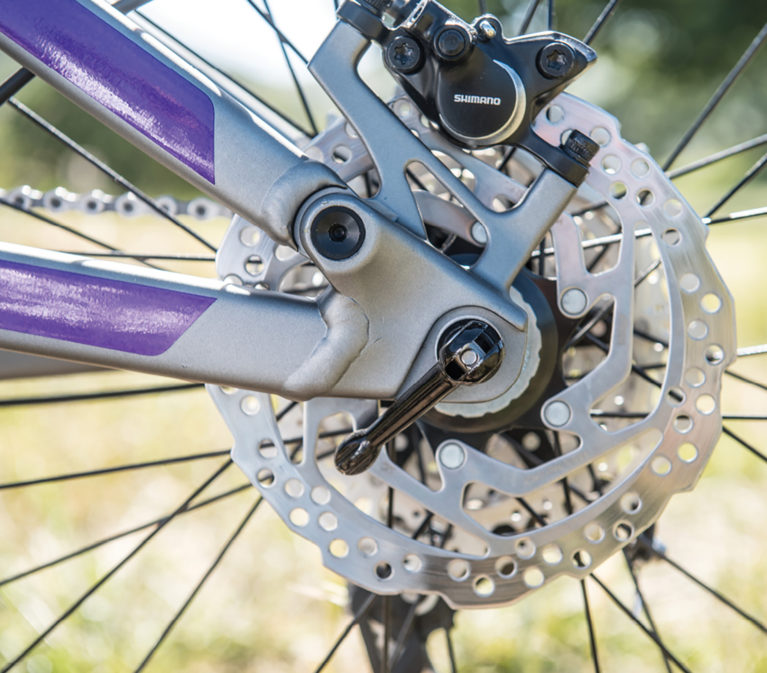

DISC BRAKES

Hydraulic disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.




AIR SUSPENSION

Easily adjustable air suspension is tunable for a growing kid.

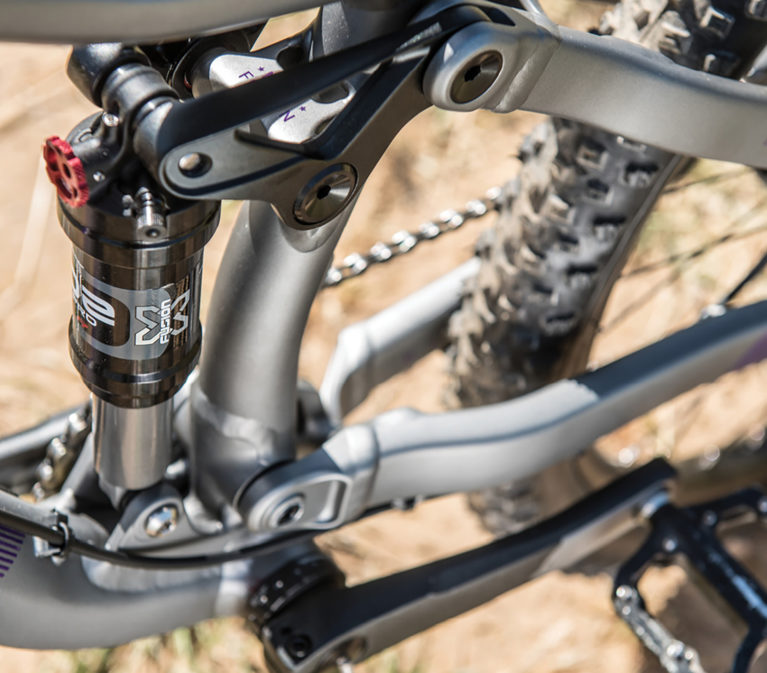

SUSPENSION SETUP

MultiTrac is an acclaimed rear suspension
system, fine-tuned through years of riding
and testing to have a balanced ride capable
of absorbing big hits while having an efficient
pedaling platform. The rocker link provides a
progressive leverage ratio for the rear shock for
small bump sensitivity and the feeling of a long
travel system on large drops and rocks. Available
on our Rift Zone, B-17, and Hawk Hill families
of bikes.



X-FUSION O2 PRO R

RIDER WEIGHT

SAG: 27-30% RANGE, ALL PSI ARE AT 30% SAG

LBS

KG

PSI

80

36

34

90

41

42

100

45

50

110

50

58

120

54

66

130

59

74

140

64

82

150

68

90
